Tension Spring How Work?
A Tension Spring, Also Known As A Coil Spring Or Helical Spring, Is A Mechanical Device That Stores And Releases Energy When Subjected To A Pulling Or Stretching Force. It Is Widely Used In Various Applications, Ranging From Simple Household Items To Complex Machinery. In This Response, I Will Explain The Working Principles, Design Considerations, And Applications Of Tension Springs.
Working Principles:
Tension Springs Operate Based On Hooke’S Law, Which States That The Force Required To Extend Or Compress A Spring Is Directly Proportional To The Displacement Of The Spring From Its Equilibrium Position. This Law Can Be Mathematically Expressed As F = Kx, Where F Is The Force Applied, K Is The Spring Constant (A Measure Of Stiffness), And X Is The Displacement.

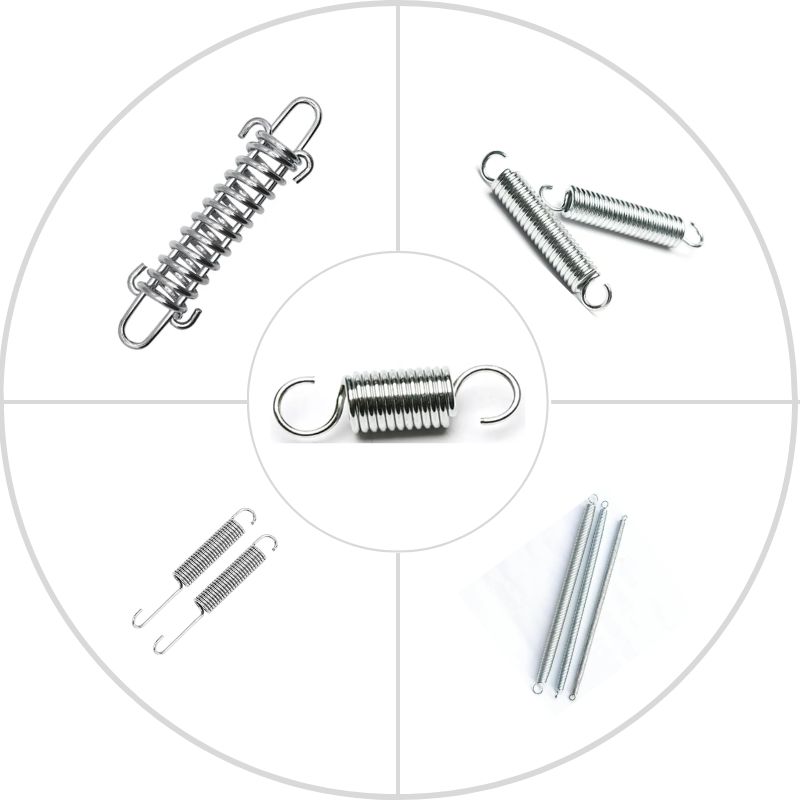

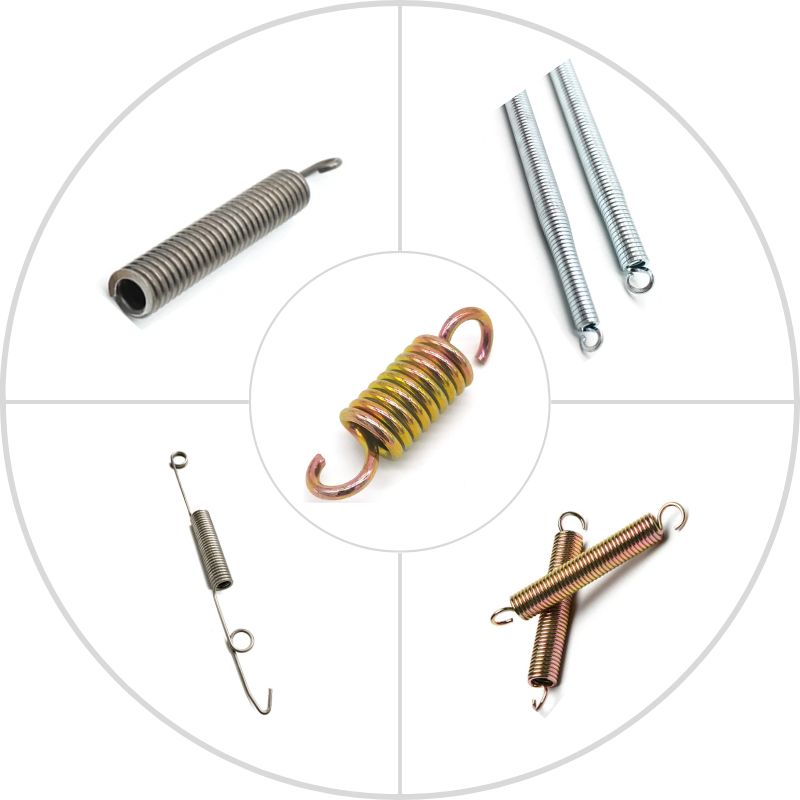

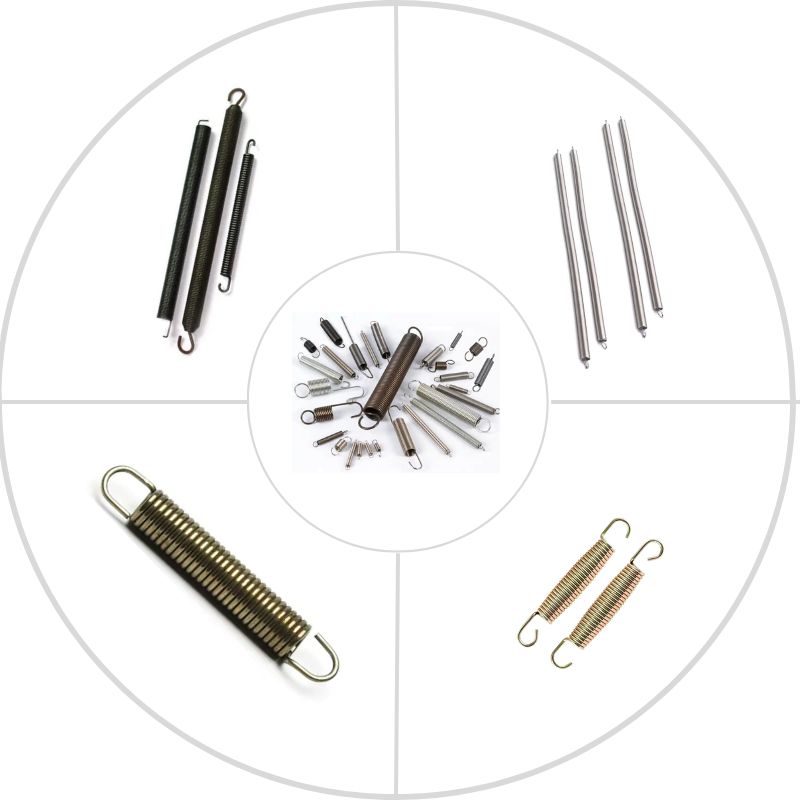

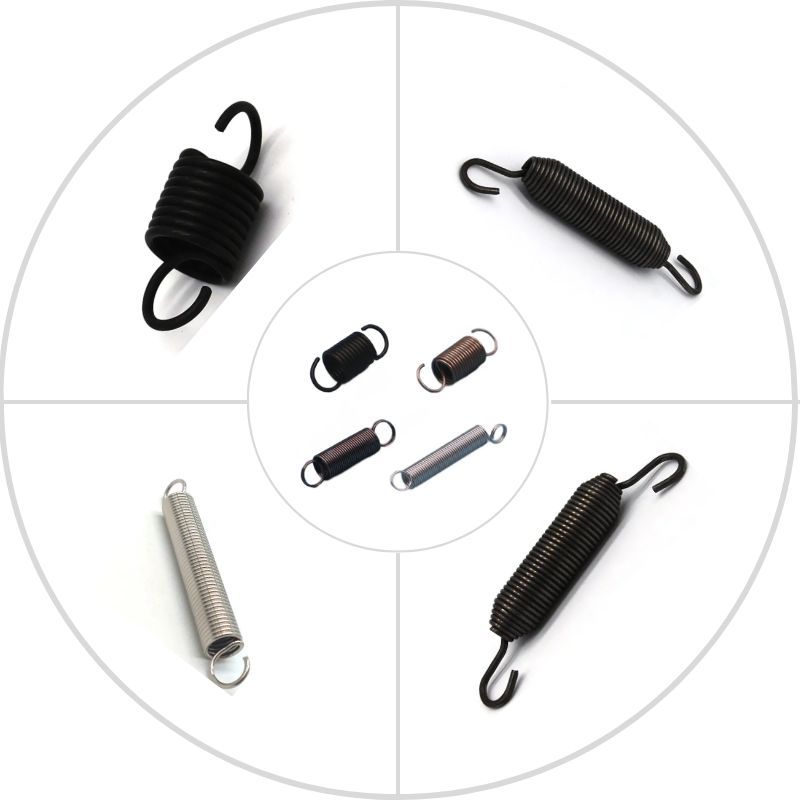

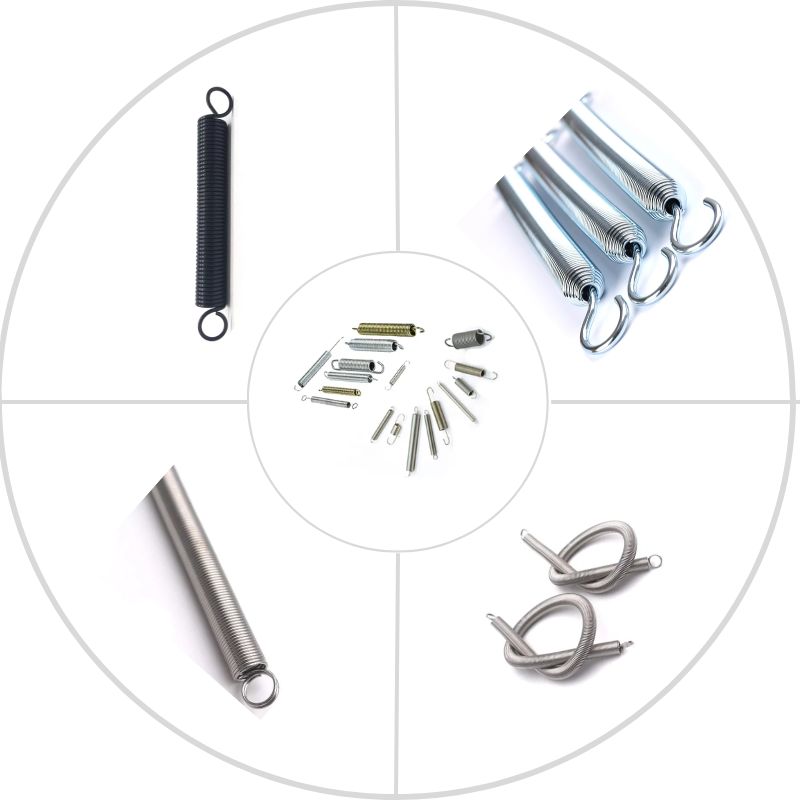

A Tension Spring Typically Consists Of A Tightly Wound Coil Of Wire, With The Ends Designed To Provide Attachment Points. When A Force Is Applied To The Spring, It Stretches, Causing The Coils To Separate And The Wire To Elongate. The Spring Then Exerts An Equal And Opposite Force, Trying To Return To Its Original Length. This Force Is What Allows The Spring To Store And Release Energy.
Design Considerations:
Several Factors Need To Be Considered When Designing A Tension Spring To Ensure Optimal Performance. These Include:
1. Material Selection: The Choice Of Material Depends On The Application Requirements, Such As Load Capacity, Temperature Range, Corrosion Resistance, And Durability. Common Materials Used For Tension Springs Include Stainless Steel, Music Wire, And Various Alloys.
2. Wire Diameter: The Diameter Of The Wire Used Affects The Spring’S Strength And Flexibility. Thicker Wires Provide Higher Load Capacity But Reduce Flexibility, While Thinner Wires Offer Greater Flexibility But Have Lower Load-Bearing Capabilities.
3. Coil Diameter: The Diameter Of The Coil Affects The Spring’S Overall Size And Its Ability To Store Energy. Smaller Coil Diameters Result In Stiffer Springs, While Larger Diameters Provide More Flexibility.
4. Number Of Coils: The Number Of Coils Determines The Spring’S Length And The Amount Of Energy It Can Store. More Coils Result In Longer Springs With Higher Energy Storage Capacity.
5. Pitch: The Pitch Refers To The Distance Between Adjacent Coils. It Affects The Spring’S Flexibility And Load-Bearing Capacity. A Smaller Pitch Provides A Stiffer Spring, While A Larger Pitch Offers More Flexibility.
In Conclusion, Tension Springs Are Versatile Mechanical Devices That Store And Release Energy When Subjected To A Pulling Or Stretching Force. By Understanding The Working Principles And Design Considerations, Engineers Can Create Tension Springs Suitable For A Wide Range Of Applications. Whether It’S In Automotive, Industrial, Consumer, Medical, Or Aerospace Industries, Tension Springs Play A Crucial Role In Providing Controlled Tension, Absorbing Shocks, And Facilitating Movement.
I Wish Everyone Can Find Their Own Hardware Accessories, Xiamen Hongsheng Spring Welcome Your Choice!
